ZRS solar hybrid inverter generally packed with neutral wooden box. 3000w-5000w inverter package dimension(L*W*Hmm): 530*340*635mm, g.w. weight 47kg-56kg 8000w-10000w inverter package dimension(L*W*Hmm): 610*440*800mm, g.w. weight 80kg-85kg
1 - 1
To be negotiated
Max input voltage
MPPT tracking range
60V~120V(Recommend: The open circuit voltage should be less than 120V)
120V-240V(Recommend: The open circuit voltage should be less than 240V)
MPPT route number
Max input power
Battery (Flexible configuration)
Type of battery
Lead-acid battery / Lithium-ion battery
Max charging current (Can be set,Recommended 0.1C)
(Can be set)
(Can be set)
Input voltage range
Rated input frequency
Loss protection time
AC Output (PV/Battery mode)
Rated output power
Rated output voltage
Output voltage accuracy
Rated output frequency
Output frequency accuracy
AC Output (Mains mode)
Rated output power
-20℃~60℃(Derating above 45°C)
2000m(More than derating)

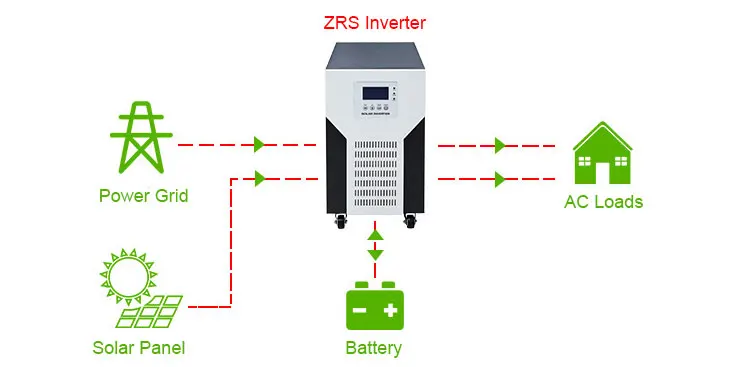

Solar Hybrid Inverter Woring modes
With power grid, solar, and batteries, inverter always uses solar energy first:
1, If the solar power generation is 1000W and the AC load is 600W. The solar power supply 600W to the AC load, and 400W is left to charge the battery. At this time, the power grid does not provide energy.
2, If the solar power generation is 1000W, the AC load is 1600W. The solar power supply 1000W for the AC load, the power grid supply 600W for the load (AC priority mode) or the battery supplies 600W for the load (Battery priority mode)
No power grid and batteries, but solar is available, the inverter automatically turns on and operates in the solar state, and the AC load is completely powered by the solar energy.
If the solar power generation is 1000W, the total power of the AC load can only be ≤1000W, and over 1000W will trigger the overload protection.
No solar and batteries, but power grid is available, the inverter automatically turns on and operates in the power grid state, and the AC load is completely powered by the power grid.
If the power gird is powered off, the AC load cannot continue to operate.
No battery, but power grid and solar is available,inverter always uses solar energy first:
1,If the solar power generation is 1000W, the AC load is 600W. The solar powers the AC load to 600W. At this time, the power grid does not provide energy.
2,If the solar power generation is 1000W, the AC load is 1600W. The solar power supply 1000W and the power grid supply 600W for the AC load.
Solar hybrid inverter wiring method
Delivery & Payment
Packaging & Shipping
Package Wooden Box advised for Samples and batch to protect in transportations.
Shipping 1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door. 2. By air or by sea for batch goods, for CFL, Air port/ Port receiving. 3. Customers specifying freight forwarders or negotiable shipping methords. 4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
30% T/T in advance, balance paid before dispatch
30% T/T in advance, balance paid against copy of B/L
L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional)
